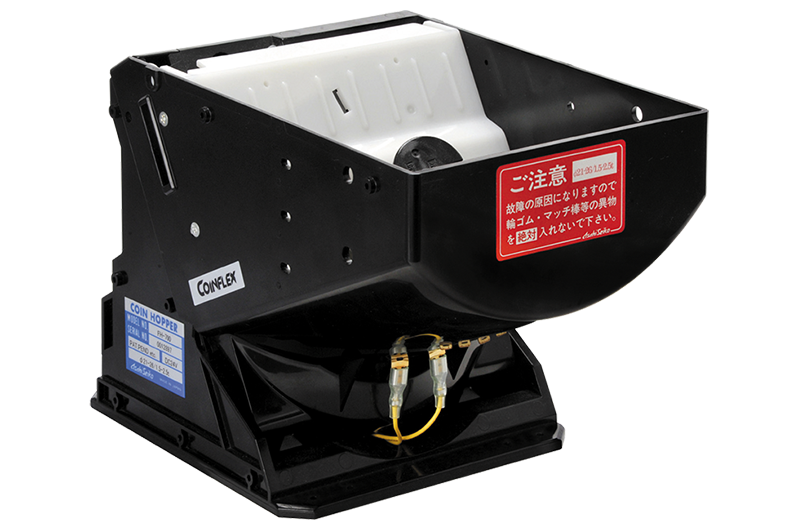

MODELFH-700

ADJUSTMENT-FREE HOPPER THAT IS COMPACT AND EASY TO USE

FEATURES

The FH-700 allows customer the flexibility to change the coin without adjusting the hopper if it within the range of dispensing coin size. Asahi Seiko designed this hopper with the field service industry in mind.

All coin sizes dispense to the last coin and are 100% disc efficient, which means you do not have coin missing on the disc as it dispenses.

GENERAL SPECIFICATION

Applicable Coin Size Diameter: 21.0~ 26.0mm Thickness:1.5~ 2.5mm
Dispensing Speed Approx. 500 pcs per minute
(*)Dispensing speed may vary depending on motor gearbox deceleration ratio, or coin specifications.
Coin Capacity 25 cents (24.3mm x 1.6mm): approx. 700 pcs
Counting Method Photo-Optic Sensor
Motor (Voltage) Options 24VDC
Motor Brake Circuit Board DCMB-0720
Operating Temperature 0°C to +50°C
Weight approx. 1.0 kg
