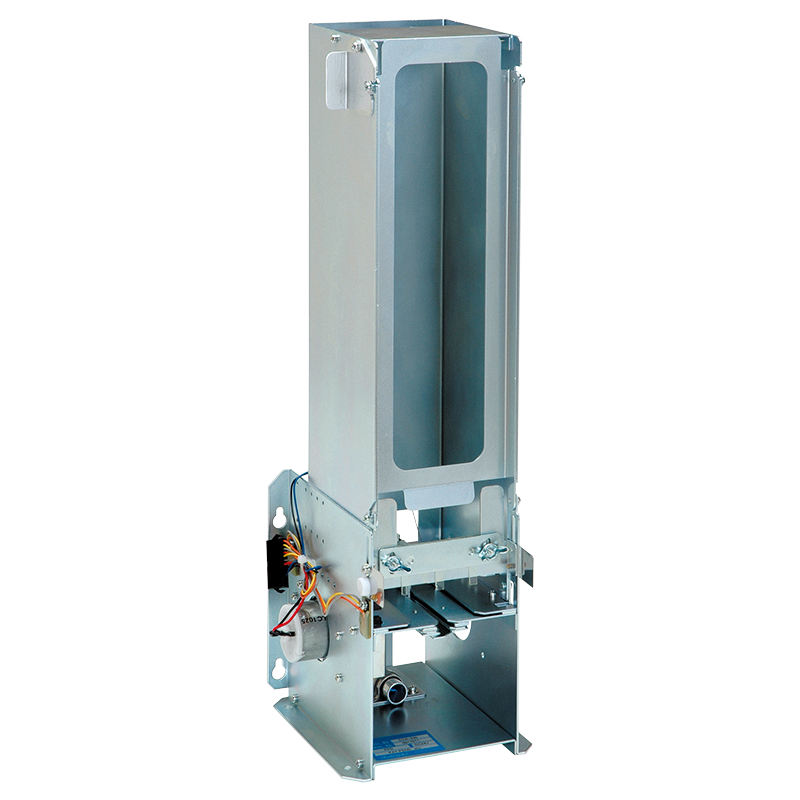

MODELCTR-500

PLANE AREA NOW HALF OF ITS SIZE BY INCORPORATING MOTION RACK.
UNIQUE MOTION RACK NOW AVAILABLE TO DISPENSE BOXES.  BEST SUITE FOR VENDING MARKET

FEATURES

Asahi Seiko developed the CTR-500 incorporating unique motion rack.  Now the depth of the unit is half of its size which made the equipment design easier than before.  It dispense each boxes consistently.

GENERAL SPECIFICATION

Applicable Boxes Size 101.0mm (W)×71.0mm (L) Thickness: With in 26.0mm
Diskette Capacity about 25 pcs
*varies depending upon the thickness of the card.
Supply Voltage 24VDC±10%
Current Consumption At halt: 0.3A, During operation: 2.0A
Operating Temperature -10°C~+60°C
Operating Humidity below 90% RH
Weight approx.2.2 kg
