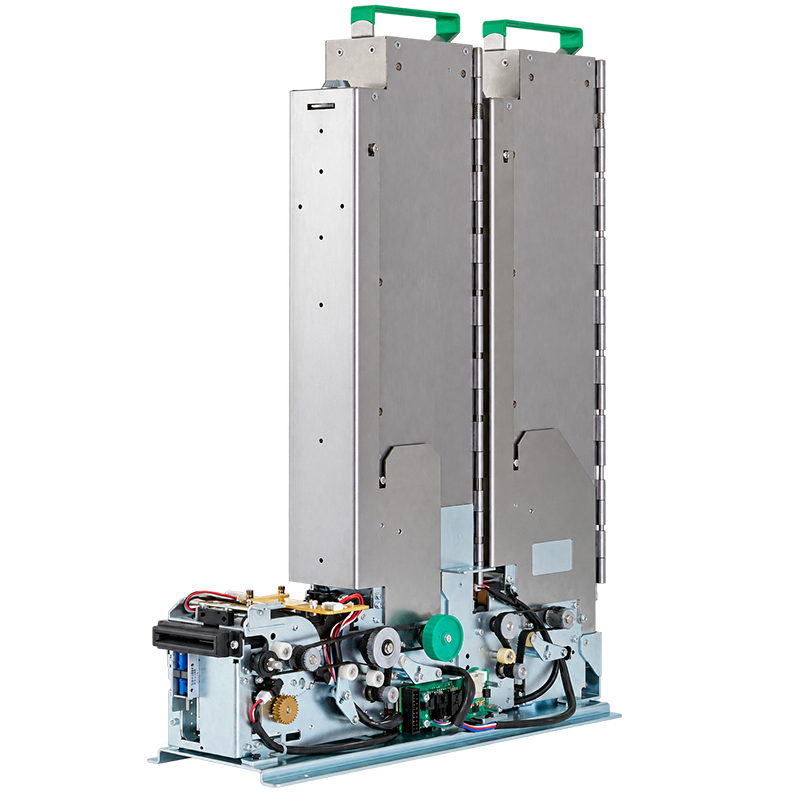

MODELSCD-3500
The SCD-3500 dispenser has been designed to increase the capacity of the standalone SCD-2500 by 100%.
When the front cassette is empty, the rear cassette will then dispense card automatically.
FEATURES
High Capacity Card Cassette
500 cards X 2 cassettes (Card size：54 X 86 X 0.8mm)
Encode and capture contact and contactless card
No need to change the cassette position
Secure cassette with lock
GENERAL SPECIFICATION
| Secure cassette with lock | RS-232 interface |
| Supply voltage options | 24VDC+/-10% |
| Current consumption | Operational:250mA (average) 2.0A (peak) Standby:100mA (average) 600mA (peak) RS-232 interface |
| Applicable card size | 54.0mm W x 85.7mm L x 0.5mm~1.0mm Thickness *Embossed card cannot be used. |
| Applicable contact IC cards | Standard ISO-7816 IC card |
| Applicable contactless IC cards | A card reader can be selected capable of reading any type of card. |
| Stored Card Capacity | Up to 1,000 cards (500 cards X 2 cassettes)*0.76mm thickness |
| Types of cassettes | Secure cassette with lock |
| Size | 130(W) X 445(D) X 574(H)mm |
| Weight | Dispenser:4.6Kg, Cassette: 1.2Kg X 2 pcs |
